Description

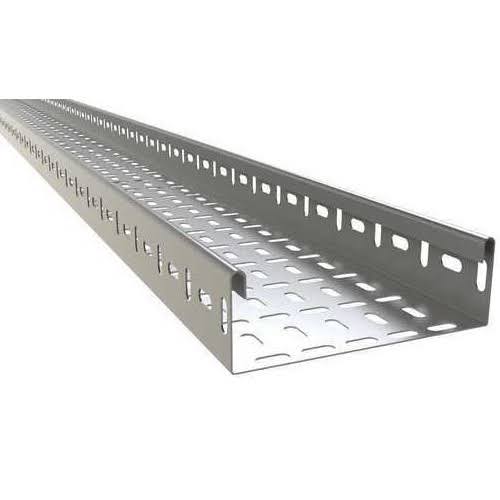

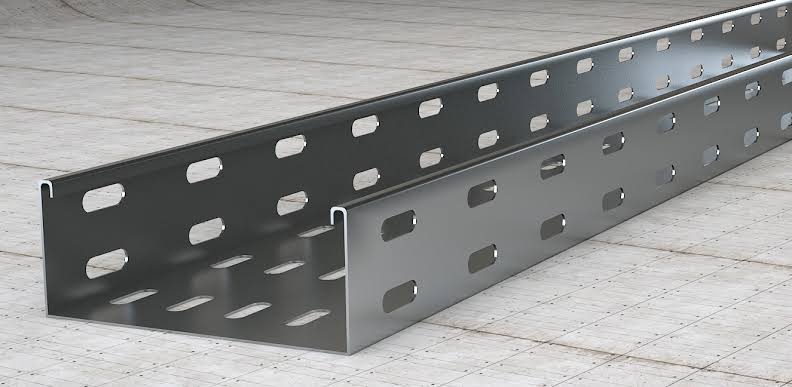

Perforated Cable Tray is available in widths from 50mm to 900mm. The width is measured internally between the side walls.

Perforated Straight Cable Tray is available in standard lengths of 3m.

Perforated Cable Tray features a slot pattern which is standard across the range of cable trays.Based on a repeating pattern of 12mm by 8mm width wise slots, and 20mm by 8mm length wise,

Perforated Cable Tray slot pattern suits cable ties, banding and cable cleats with M6 fixings.See the Cable Tray Engineering Section for details.

Medium Duty Perforated Cable Tray return flanges are suitable for applications where medium duty cable loads are to be supported over short to medium spans.

Heavy Duty Perforated Cable Tray return flanges are suitable for applications where heavy duty cable loads are to be supported over longer spans
